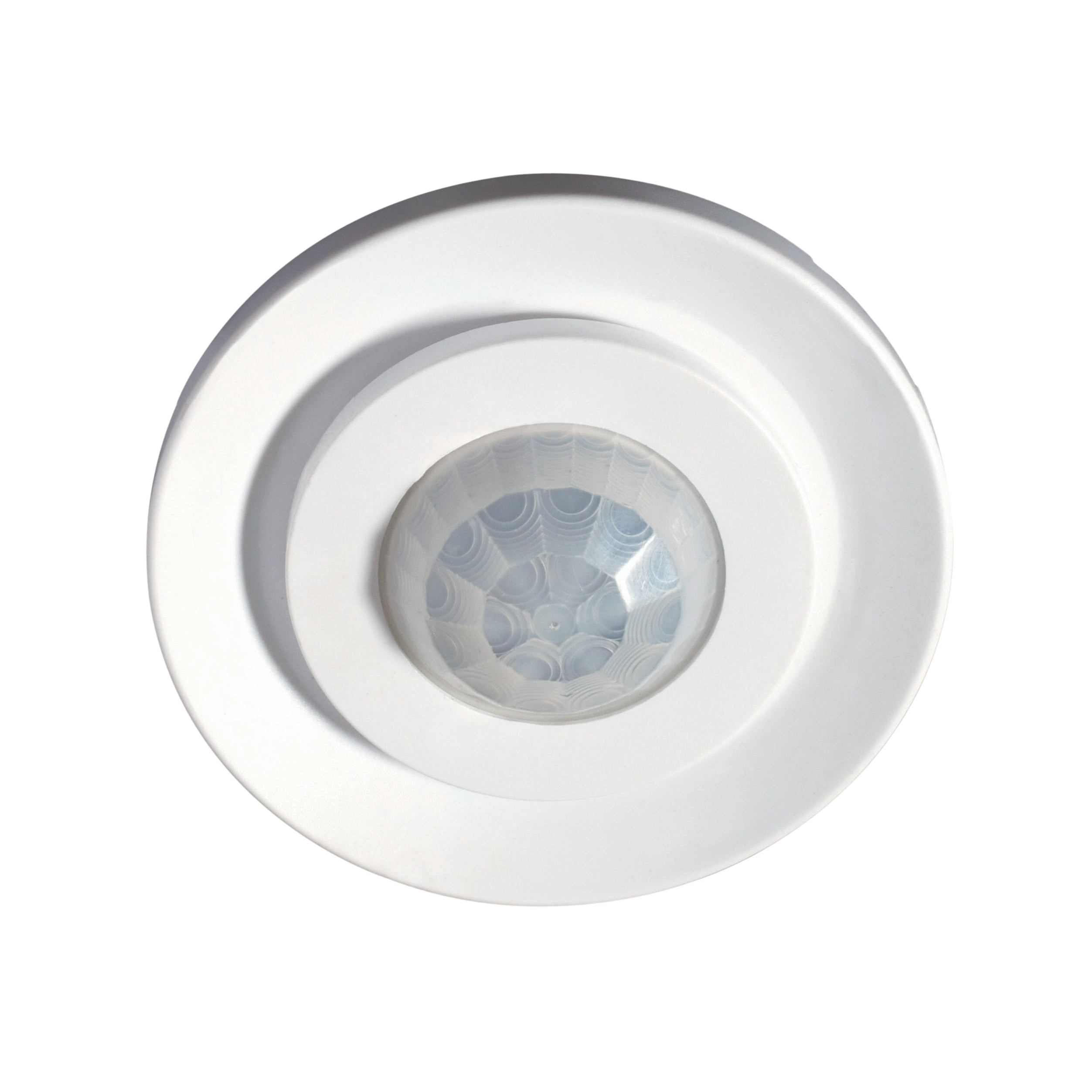

PROTON 360 DEGREE PIR WITH EASY ACCESS CONTROLS

    Categories

    PROTON 360 DEGREE PIR WITH EASY ACCESS CONTROLS
    Code: RPR360PIRR-01
    Order in multiples of: 1
    Loading...


    Product Description
  • Passive infra red ensures light is switched on when sensor detects movement of heat, switched off when area is vacated. Minimises false / unwanted triggering
  • Manual over ride with automatic reset after 8 hours
  • Large terminals accept 2 x 1.5mm2 conductors in each terminal. Facility for loop in loop out
  • Earth terminal included
  • 3 wire - multiple sensors can be wired in parallel
  • Easy access to adjust time and lux controls once PIR installed
  • High load contact rating, allows numerous fittings to be switched
  • No minimum load requirements
  • Maximum loading: - 800W Incandescent - 400W Fluorescent - 400W LED
  • Adjustable time delay of 10sec to 15min
  • Adjsutable lux settings 3lx to 2000lx
  • Max detection area of 6m diameter at 2.8m
